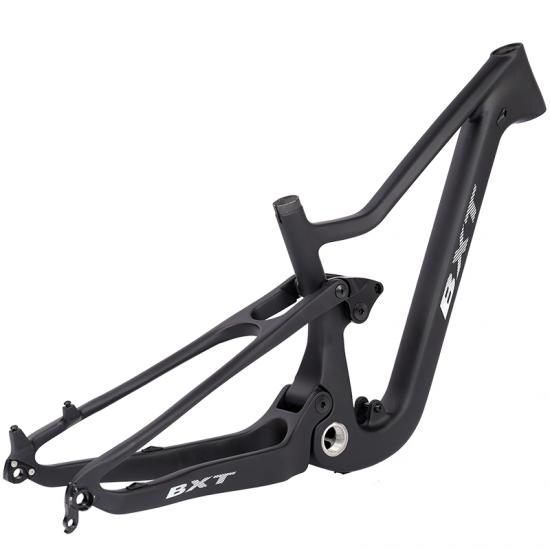

High modulus carbon fiber Cross Countryfull suspension frame 24er. 90mm frame travel. BOOST 148x12mm rear wheel specifications. Can use tires up to 2.4 inches wide.
Item NO.:
BXT-MTB-137Payment:
FOB/EXWProduct Origin:
ChinaLead Time:
1-2 Week24er XC Full Suspension Carbon Frame
High modulus carbon fiber cross country full suspension frame. 80mm frame travel. BOOST 148x12mm rear wheel specifications. Can use tires up to 2.4 inches wide.
Click this link to buy directly: (DPD tax-inclusive free shipping)：
https://bxtbikes.com/products/full-suspension-carbon-frames-24er-mountain-children-bicycle-bike-frame-thru-axle

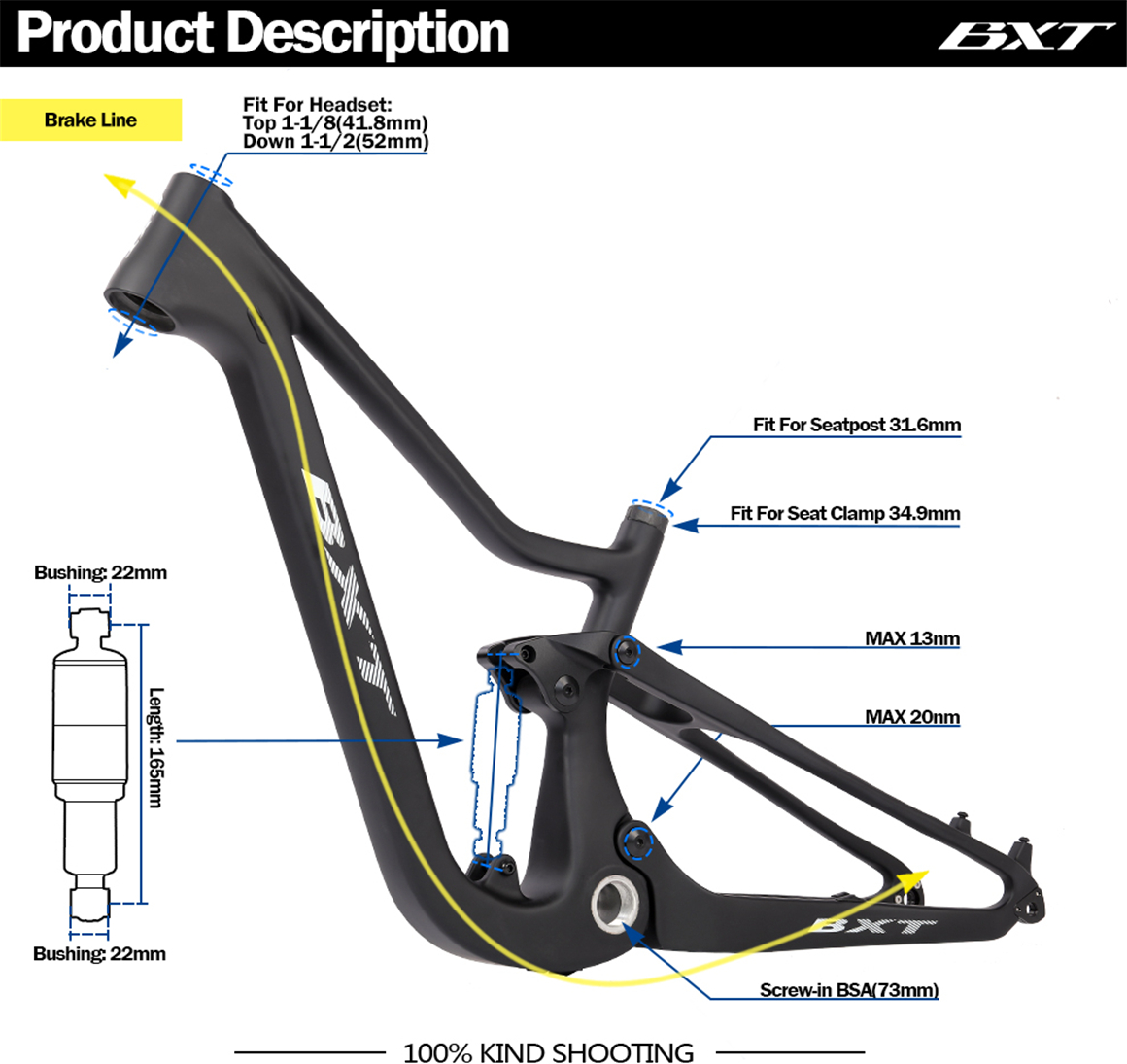

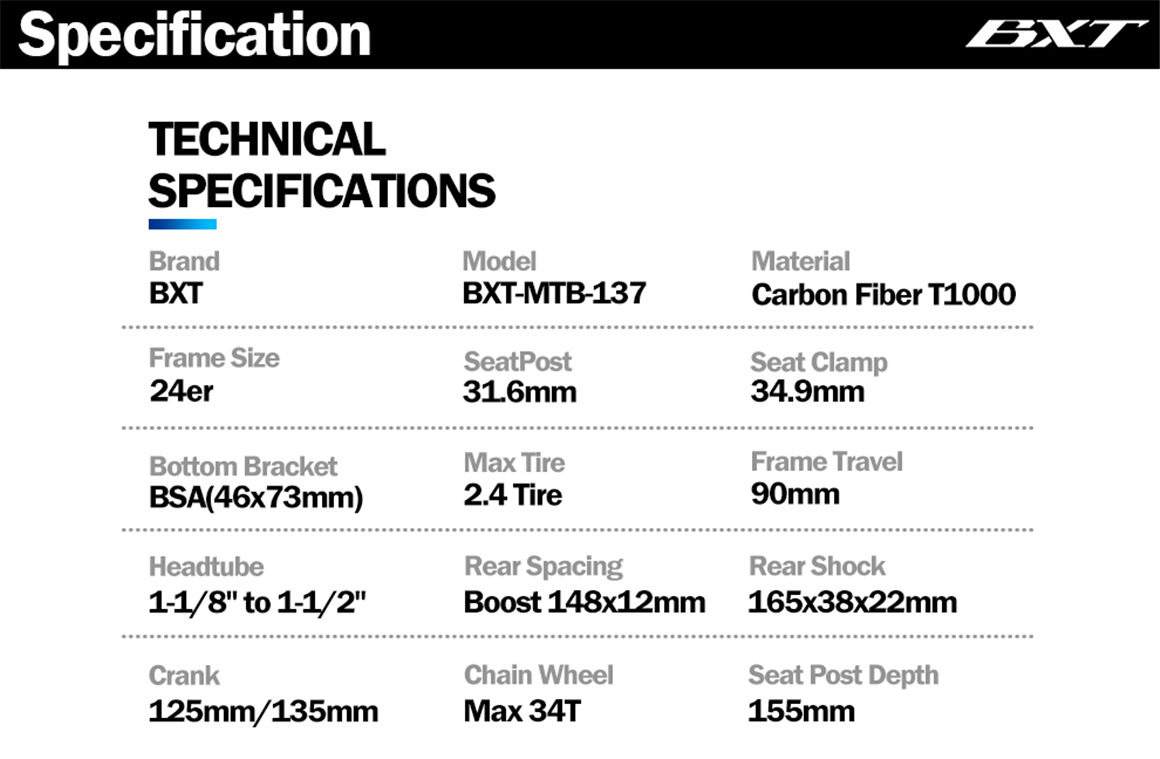

Product Description
|
Type |
Carbon Full Suspension MTB Frame |
| Material |
Carbon Fiber |
|
Frame Travel |
90mm |
|
Fit for Rear Shock |
Length 165mm,Bushing 22mm |
|
Fit for Seat Clamp |
34.9mm |
|
Fit for Seat Post |
31.6mm |
|
Fit for Crank |
125mm/135mm |
|
Fit for Chain Wheel |
Max 34T |
|
Seat Post Depth |
155mm |
|
Suitable Height |
135cm-150cm |
|
Max load |
150kg |
|
Fit for Disc Brake |
160mm |
|
Fit For Bottom Bracket |
Screw-in BSA(73mm) |
|
Recommend Fork Travel |
80-120mm |
|
Rear Spacing Specification |
Boost 148x12mm |
|
Fit for Headset |
Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
|
Fit for Tire |
24er.Max 2.4Tire |
|
Brake,Derailleur Cable |
Frame Internal |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
